Oncology, Transfusion Chairs, Day Clinic, Chemotherapy, Dialysis Chairs
UniversalLine2
The new UniversalLine2 has been specially developed for outpatient care and places particular emphasis on the excellent price/performance ratio. With its modern design, high-quality materials and sophisticated workmanship, it offers a first-class solution for every practice. Thanks to four powerful motors, it adapts effortlessly to the individual needs of each patient. BackRequest a quote now
Product highlights at a glance
✓ Illuminated handset
✓ Adjustable footrest
✓ Bi-Color Design
✓ Swivel armrest
✓ Top price/performance ratio
✓ Safe central brake
✓ Service-friendly motors
✓ Shock position via foot switch
✓ Battery operation possible
Modern comfort
meets flexible application options.

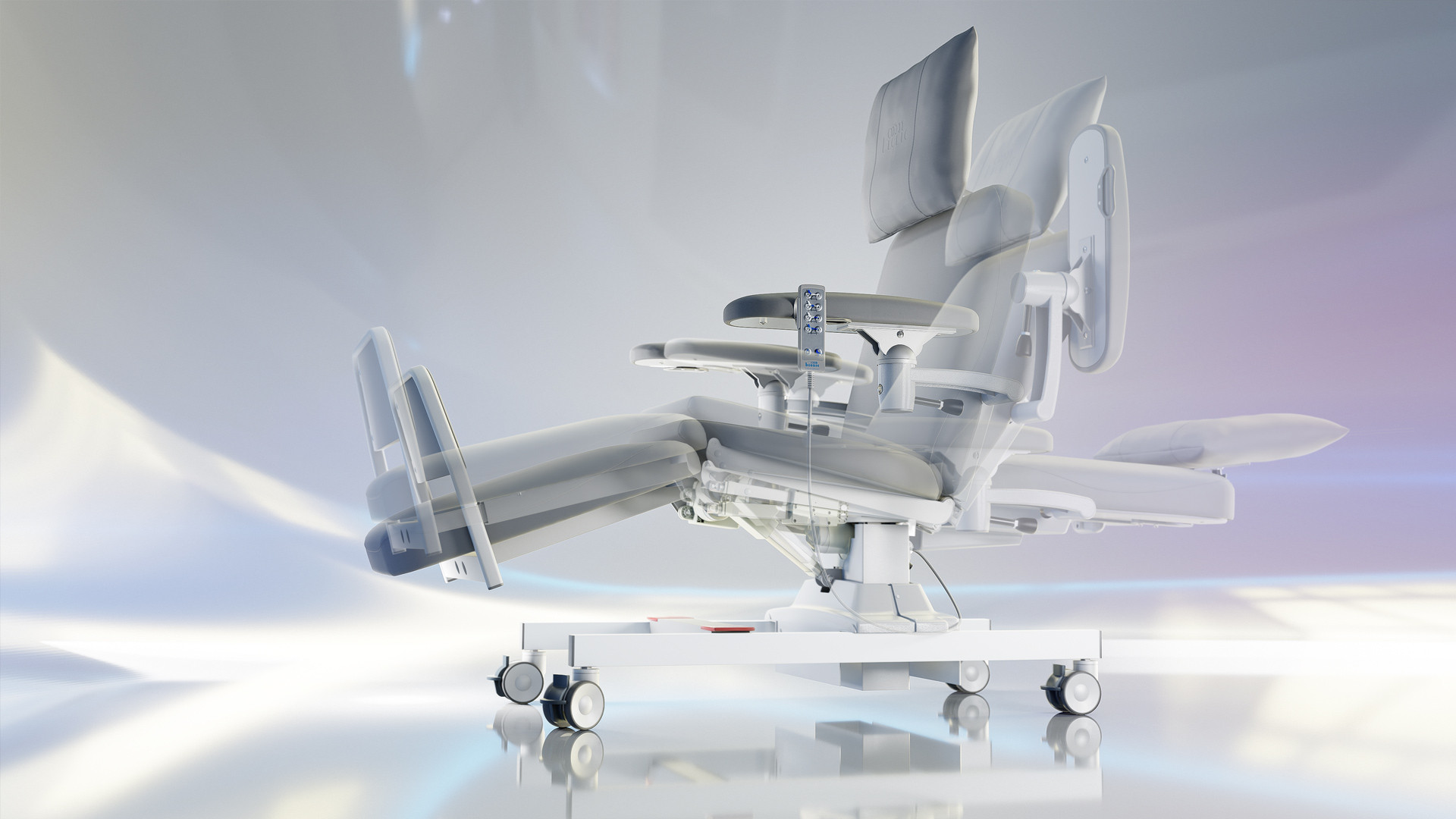

A chair that can do more: The UniversalLine2 offers comfort, flexibility and efficiency. The pre-programmed sitting position enables effortless entry and exit - at the touch of a button! The individually adjustable segments offer every patient optimum relaxation, while the intuitive armrest can be swiveled with a single movement.
Safe, efficient and flexible
for every area of application.

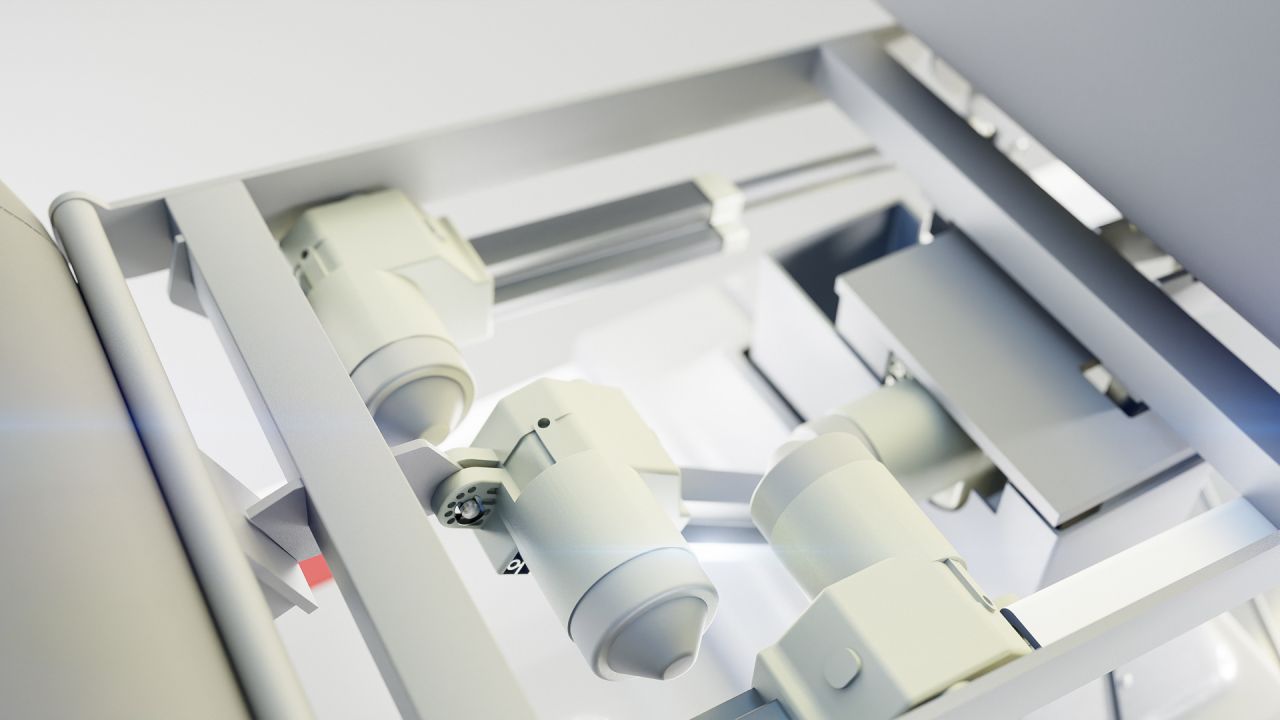

The UniversalLine2 not only impresses with comfort but also with its service-friendly design. The four motors are positioned directly under the removable seat section, ensuring easy maintenance. The manually adjustable footrest provides patients of all ages and sizes with a secure feeling. With potential equalization according to EN 60601, safety is a top priority.
Elegant design
meets functionality.

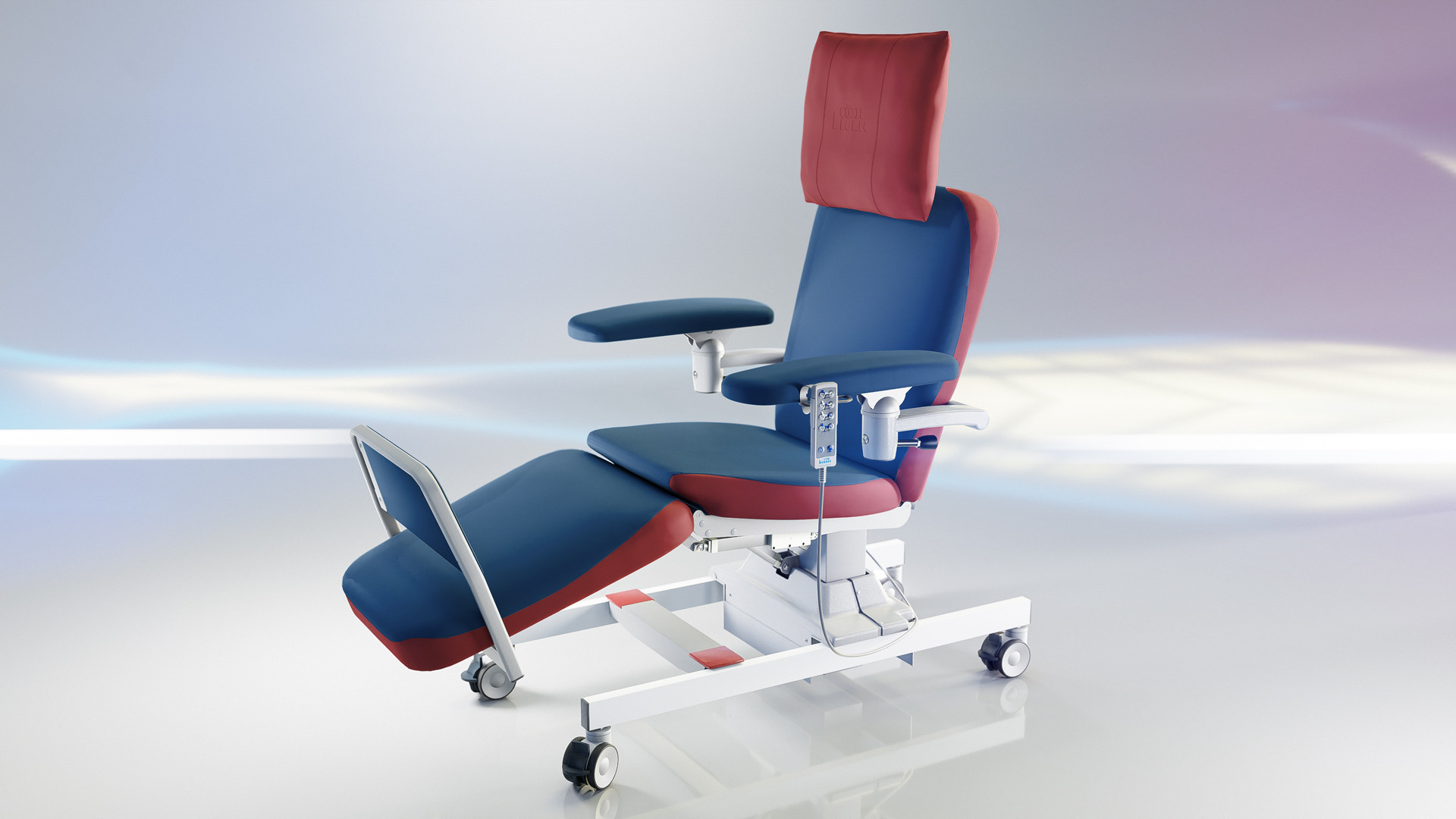

Flexible, elegant, and individual – the UniversalLine2 adapts to your practice. The elegant bi-color design makes the UniversalLine2 an optical highlight in any facility. With a wide range of color options, the chair can be perfectly tailored to your existing practice environment. A powerful battery is also available upon request, allowing the chair to be used flexibly at any location.
Versatile accessories for individual needs

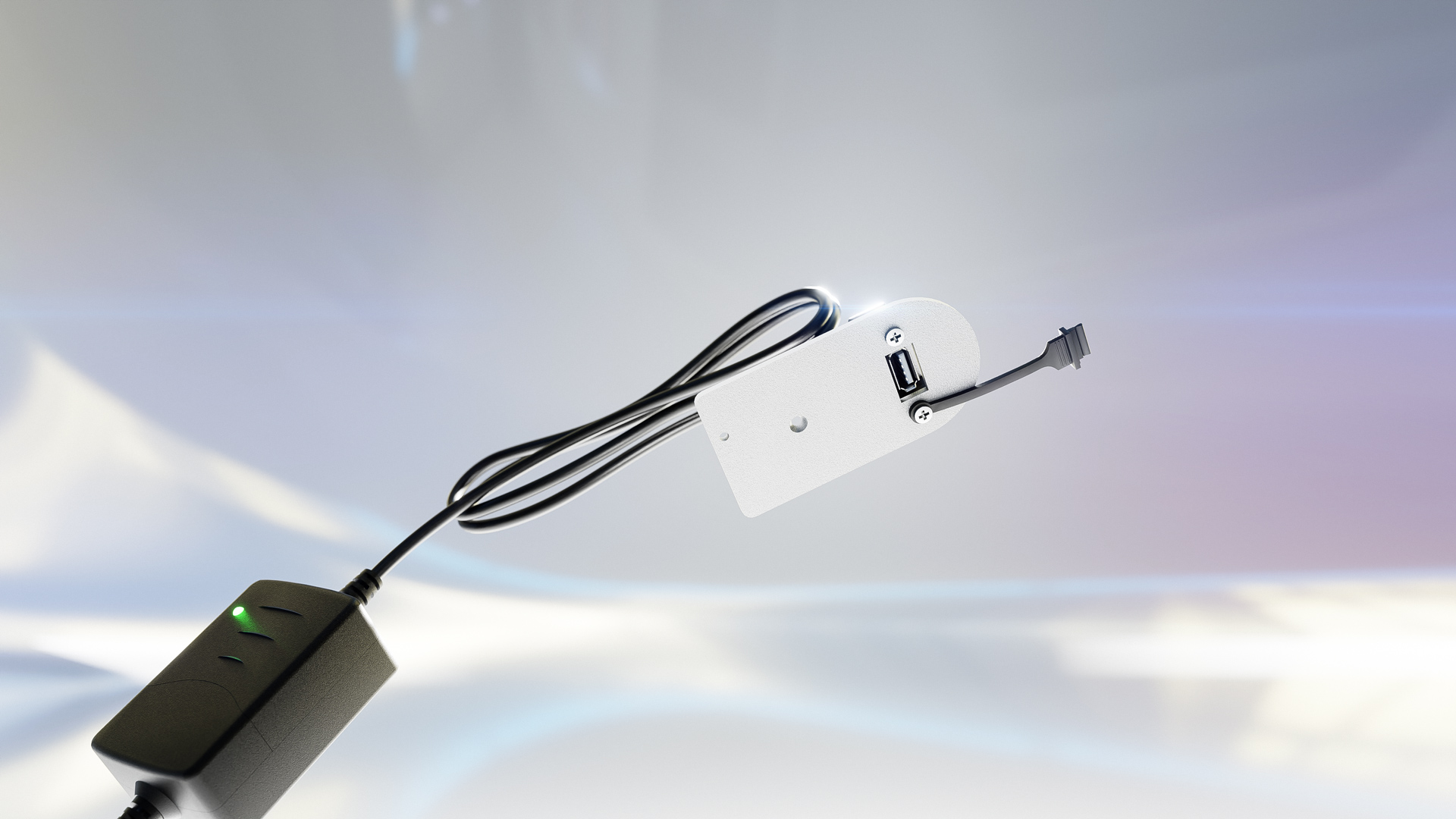

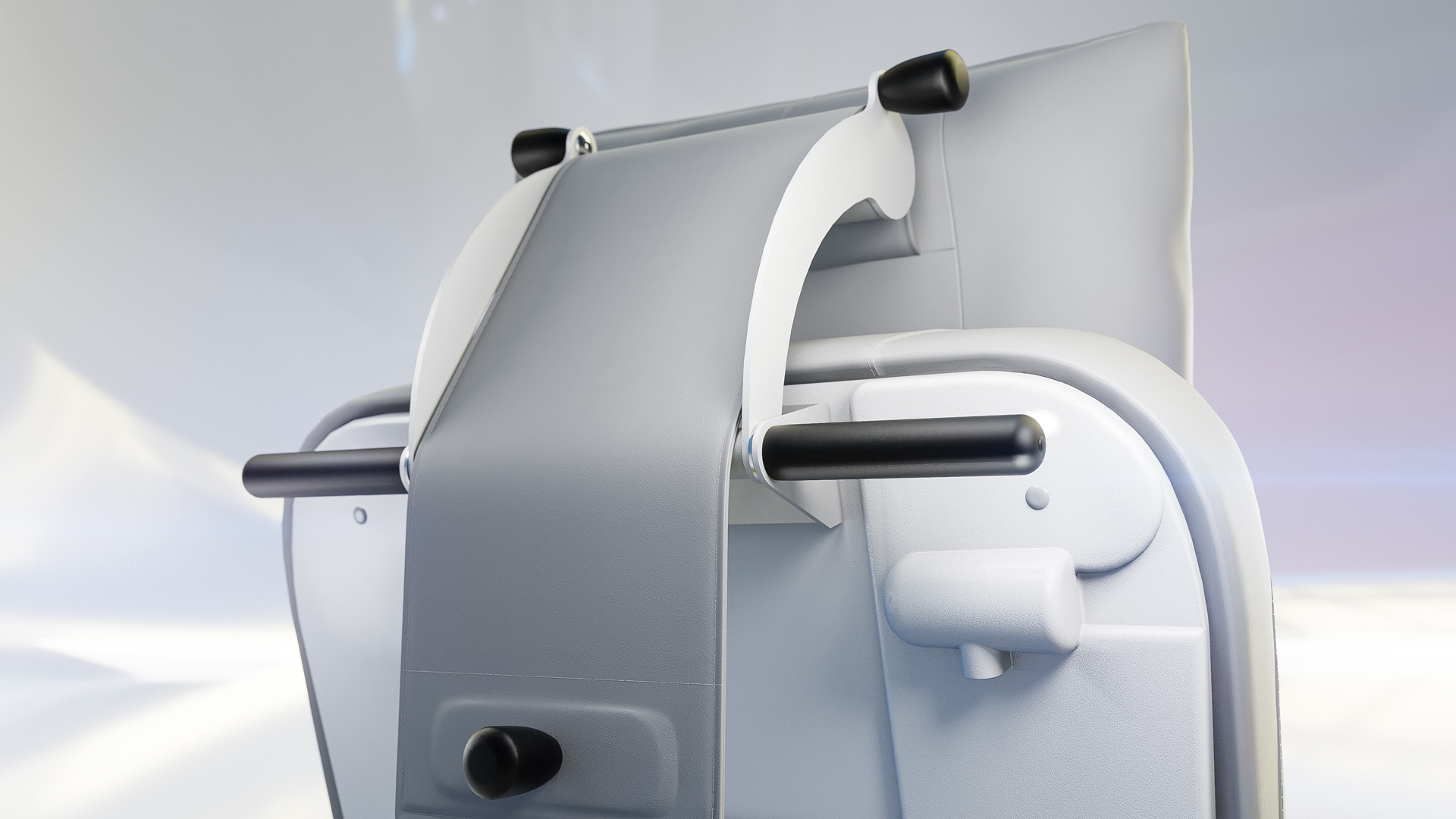

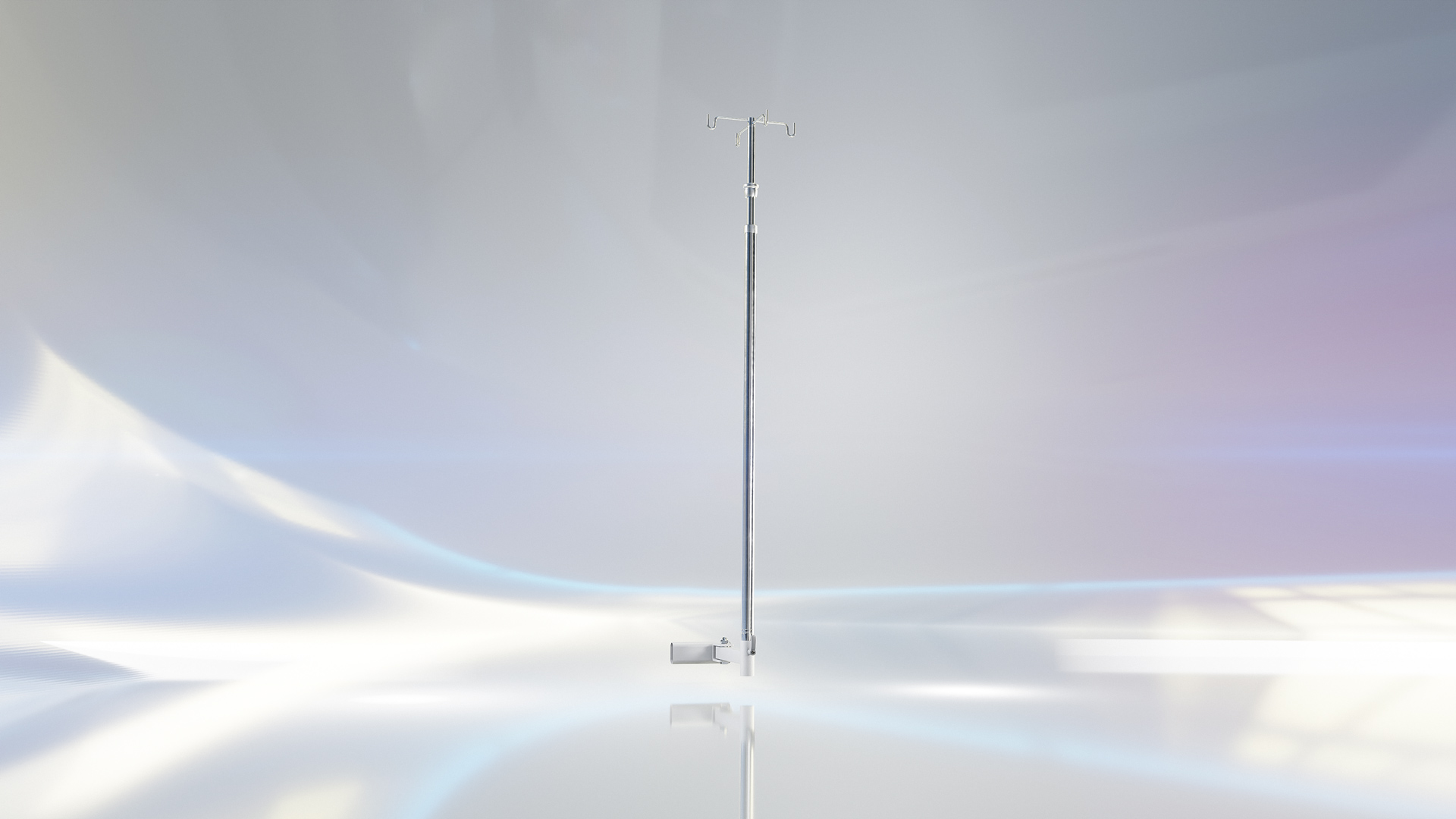

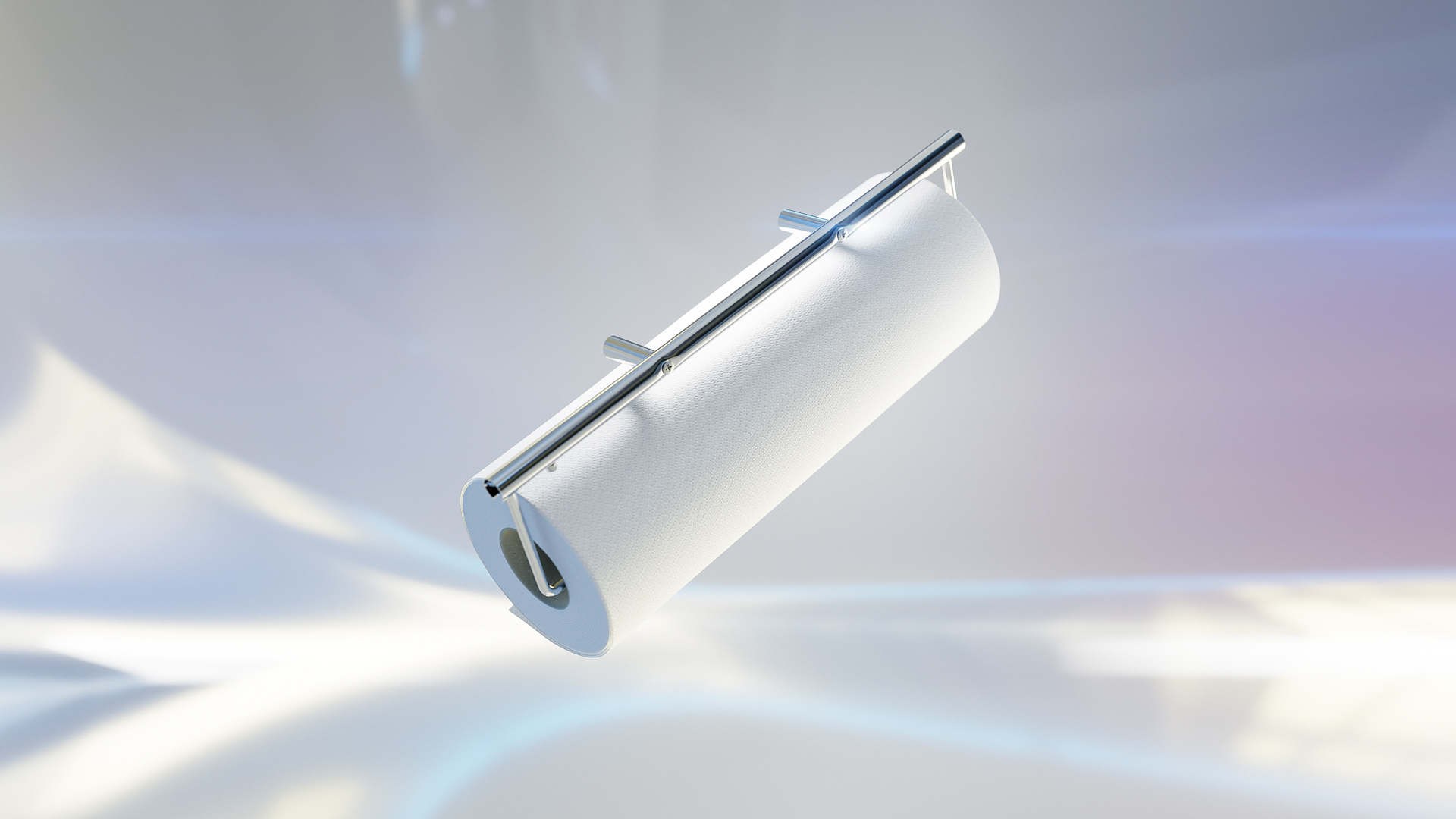

Numerous accessories, such as an infusion stand, paper roll holder, device or patient table, USB charging port, or push handle, offer the possibility to equip the UniversalLine2 therapy chair according to your specific needs.
Anesthesia
Recovery room, pain therapy
Dermatology
Chemotherapy, infusion therapy
Gynecology
Chemotherapy, breast center
ENT
Recovery room
Nephrology
Dialysis, apheresis
Oncology
Oncology day clinic, chemo outpatient clinic, infusion therapy
Rheumatology
Outpatient clinic, infusion therapy
Transfusion medicine
Blood donation, plasmapheresis, cell separation
Urology
Chemotherapy, prostate centers
- Four splash-proof motors (IPX4)
- Powder-coated frame, RAL 7035
- Three-part lying surface with individual adjustment via electric drives
- Electric seat height adjustment
- Removable footrest
- Quick and easy adjustable, soft headrest
- Tilt-resistant base frame with four 100 mm diameter wheels
- Four individually braked wheels
- Innovative, new armrests, easily foldable and adjustable in position and tilt. Protected against overload.
- Illuminated hand controller, intuitive operation
- Potential equalization
- Footswitch for shock position
| Dimensions | |
|---|---|
| Seat width | 58 cm |
| Overall width, including armrests | 90 cm |
| Overall length | 203 – 230 cm |
| Total weight | 94 kg |
| Adjustment options | |
| Backrest angle | 75° – 0° |
| Seat angle | 30° – 5° |
| Leg rest angle | 5° – 30° |
| Footrest | 28 cm |
| Height adjustment | 54 – 80 cm |
| Electrical specifications | |
| Mains voltage V / Hz | 100 – 240 Volt / 50/60 Hz |
| Protection class | 2 |
| Protection rating | IPX 4 |
| Protection rating (motors) | IPX 4 |
| Motors | 4 |
| Nominal operating voltage battery (optional) | 25,2 Volt |
| Battery capacity (optional) | 1800 mAh |
| Safety | |
| Safe working load | 240 kg |
We place great importance on the continuous improvement of our products and welcome your suggestions. To give you a closer look at the quality and functionality of our therapy chairs, we offer trial orders including accessories. Please contact us so we can find the best solution for your needs together.
