Cannulas

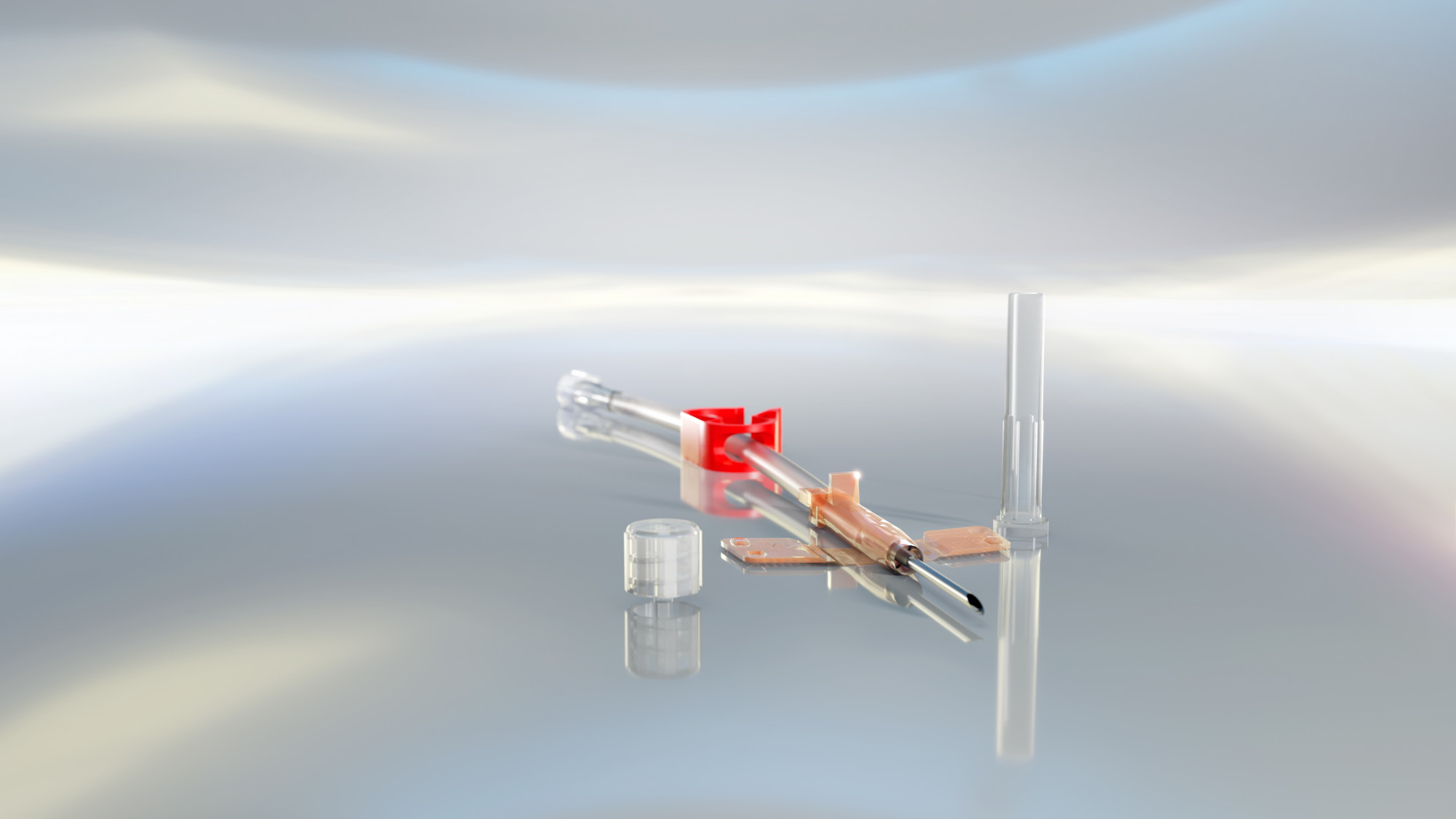

SysLoc®-Cannula
The SysLoc®-Cannula provides an innovative solution for a gentle and safe puncture. The short, transparent rotating wing is ergonomically shaped, non-slip, and can be easily folded to form a stable unit, which facilitates handling and protects the vessels. An audible click when retracting signals the safe disposal position and minimizes the risk of needle-stick injuries. BackRequest a quote now
Product Highlights at a Glance
✓ Audible click signal
✓ Color-coded tube clamps
✓ Easy and safe handling
✓ Various designs
✓ Non-slip and easily foldable
✓ Optimized bevel
✓ Oval opening
✓ Rotating wing design
✓ TÜV Product Service tested

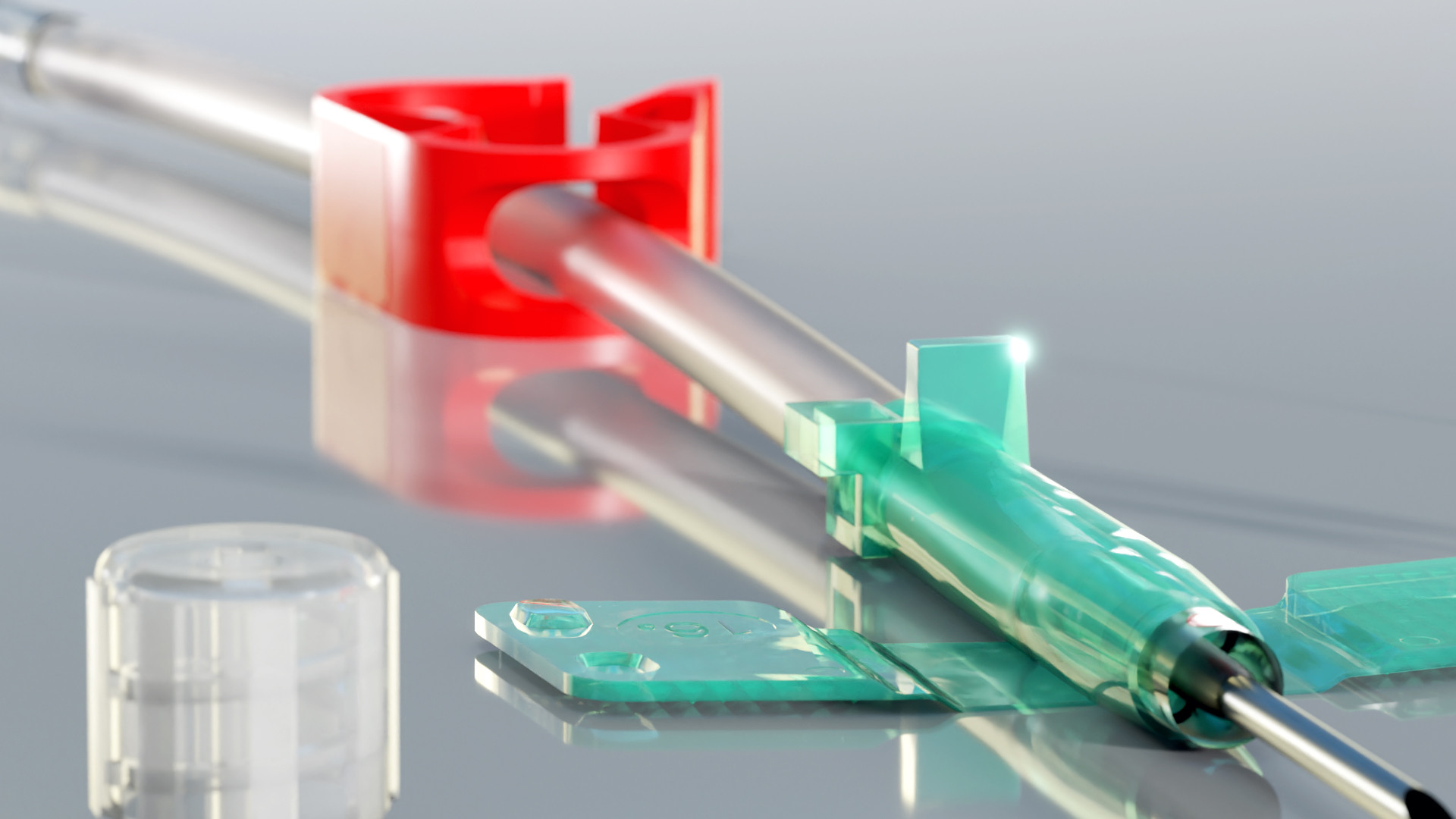

Ergonomic Rotating Wing.
More precision and safety.
The short, transparent rotating wing of the SysLoc® Cannula is specially ergonomically shaped and non-slip to ensure particularly safe and precise handling. It can be easily folded, creating a stable and rigid unit that guarantees a gentle and vascular-friendly puncture. This well-thought-out design enhances handling and provides more comfort throughout the entire procedure.
Optimal Bevel.
For minimal pain and scarring.
The optimized bevel of the cannula tube ensures a noticeably reduced pain sensation and minimizes scarring. Thanks to the oval opening of the arterial cannula, vessel suction is prevented, making the treatment even gentler. The high precision of the bevel contributes to an overall more comfortable dialysis experience and reduces the risk of complications.
Safe Disposal.
Through audible signal.
The SysLoc® Cannula offers an additional safety feature: An audible click signals when the cannula has been fully retracted and is locked into the safe disposal position. This acoustic feedback gives the user confidence that the cannula can be disposed of correctly and safely, significantly reducing the risk of needle-stick injuries.
Varied Designs for individual Requirements
Different treatment forms and vascular accesses require the right choice of needles. Bionic offers an impressive selection of over 80 different dialysis needles, including special versions for rare cases. Whether in practice, for night or home dialysis, or in the field of transfusion – the right accessories complete the range.| Cannula dimension (gauge) | Ø x length | Wing colour | Tube length |
|---|---|---|---|

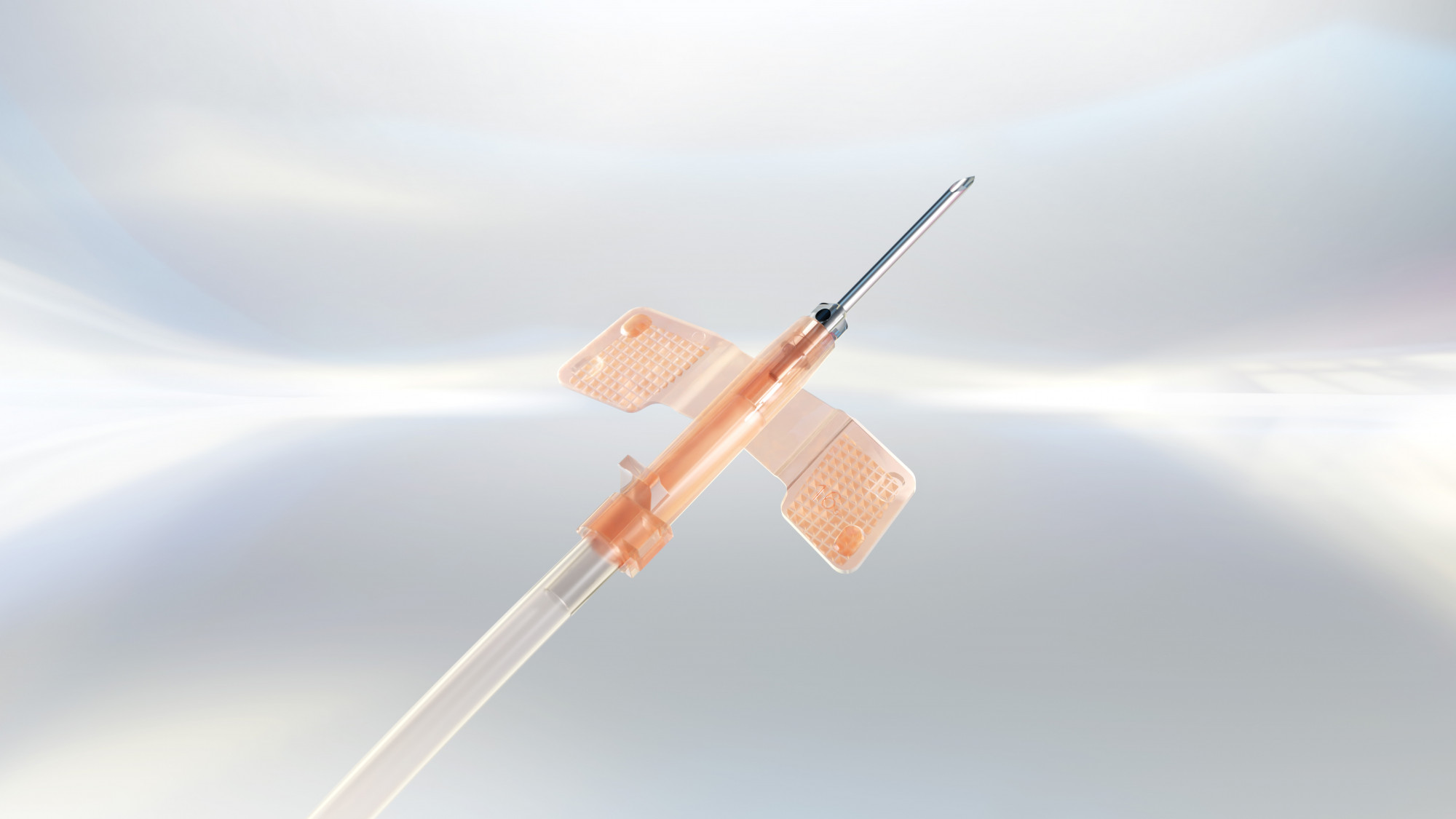

| 17 G | 1,5 x 20 mm | Orange | 15 cm, 30 cm |
| 1,5 x 25 mm | 15 cm, 30 cm | ||

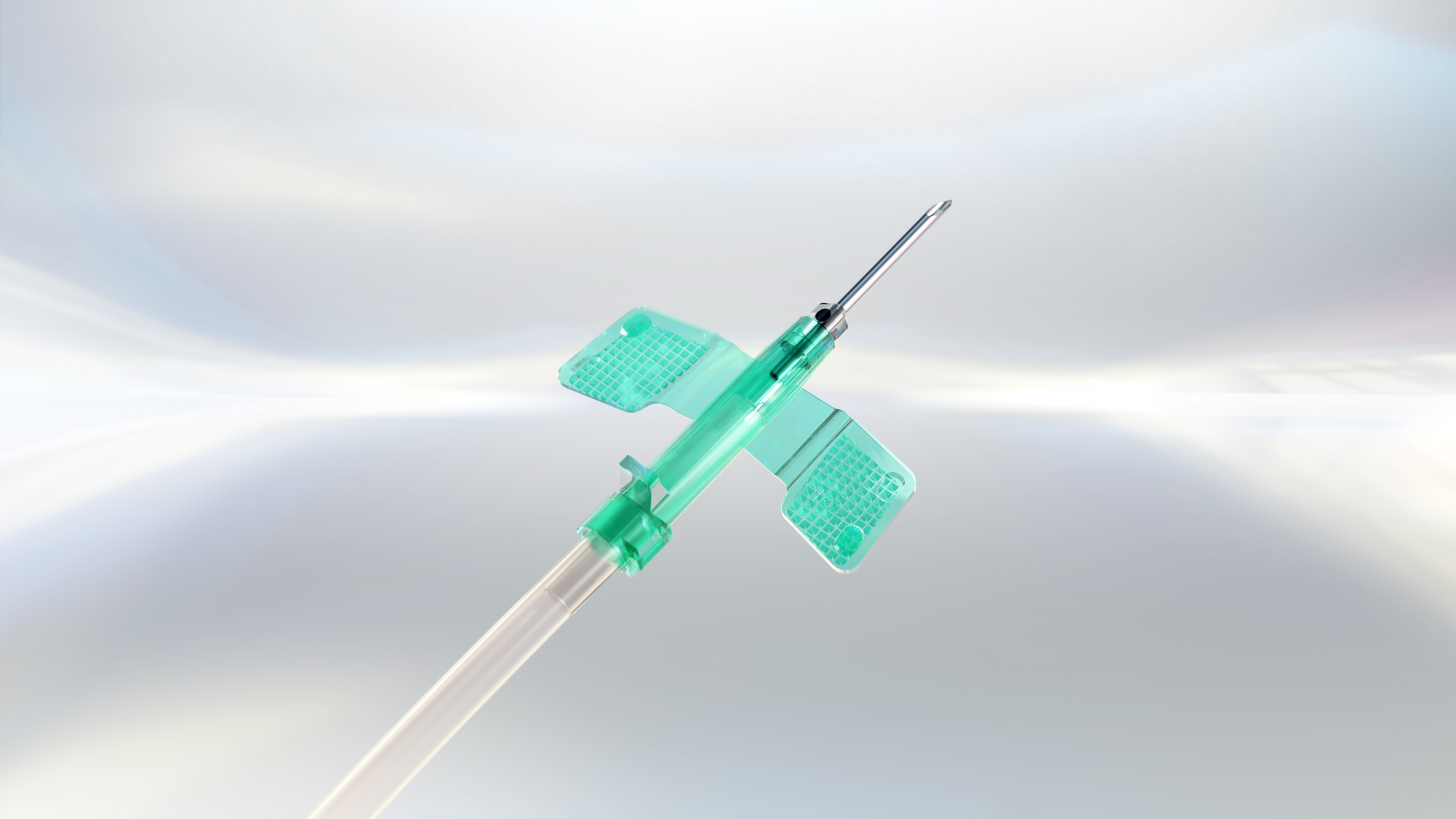

| 16 G | 1,6 x 15 mm | Green | 15 cm, 30 cm |
| 1,6 x 20 mm | 15 cm, 30 cm, 50 cm | ||
| 1,6 x 25 mm | 15 cm, 30 cm, 50 cm | ||
| 15 G | 1,8 x 20 mm | Yellow | 15 cm, 30 cm, 50 cm |
| 1,8 x 25 mm | 15 cm, 30 cm |
Puncture Set (Customised Sets)
The Bionic connection and termination sets offer customised solutions that are perfectly tailored to your individual requirements. Each set contains all the essential components for a safe and smooth connection to the extracorporeal circuit. In day-to-day dialysis, these sets help to standardise processes, save valuable time for care staff and reduce packaging waste. The use of standardised processes not only increases efficiency, but also improves safety for patients and staff.
For more than three decades, Bionic has been developing high-quality products for vascular access. Our dialysis needles stand out with exceptionally low flow resistance. For example, cannulas with an outer diameter of 1.6 mm (16G) are suitable for the standard blood flow of 300 ml/min, while cannulas with a diameter of 1.8 mm (15G) can be used for higher blood flows of up to 350 ml/min.
Discover the precision and variety of Bionic dialysis needles with rotating wings – for gentle, reliable, and effective dialysis.
