Cannulas

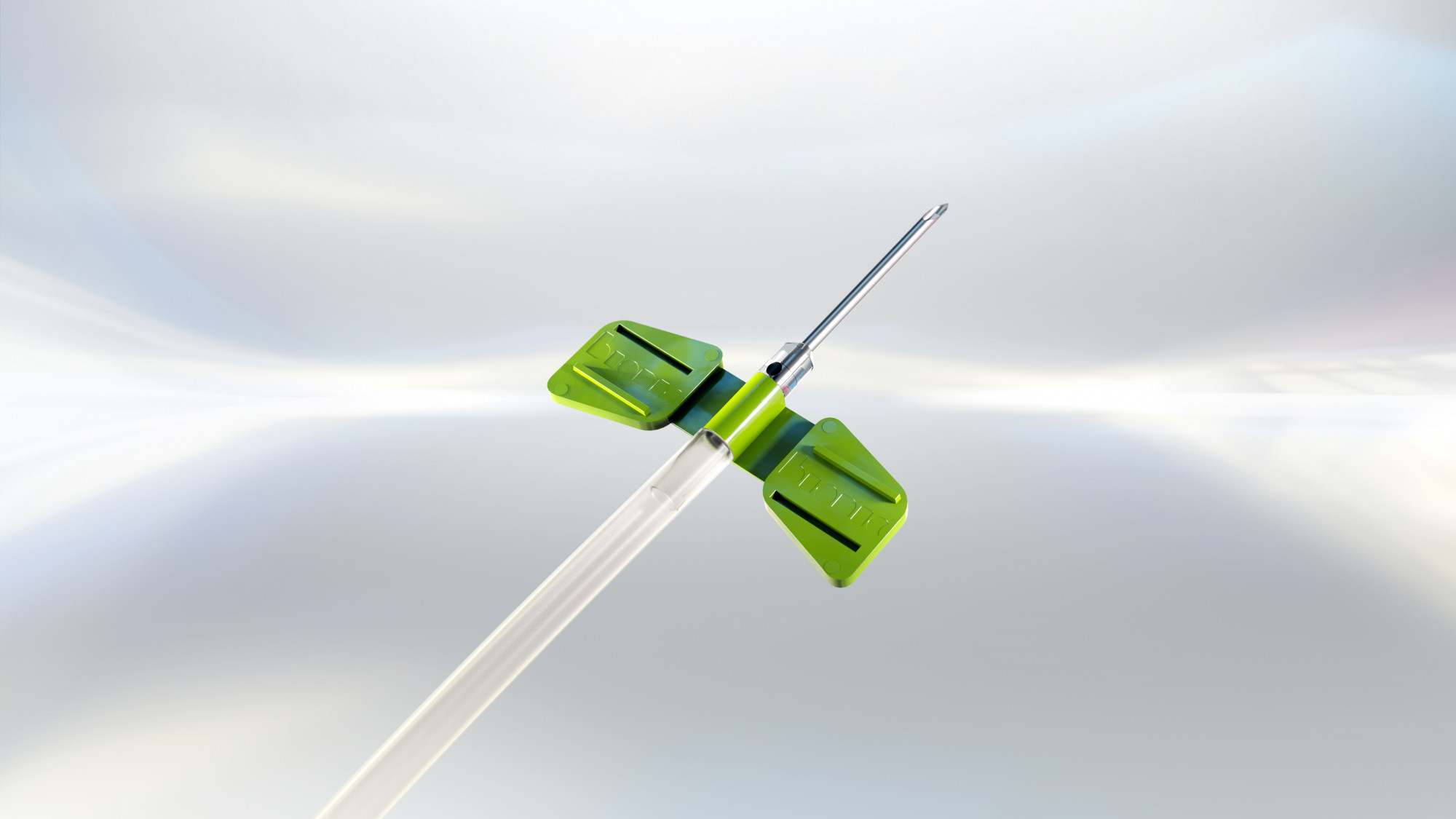

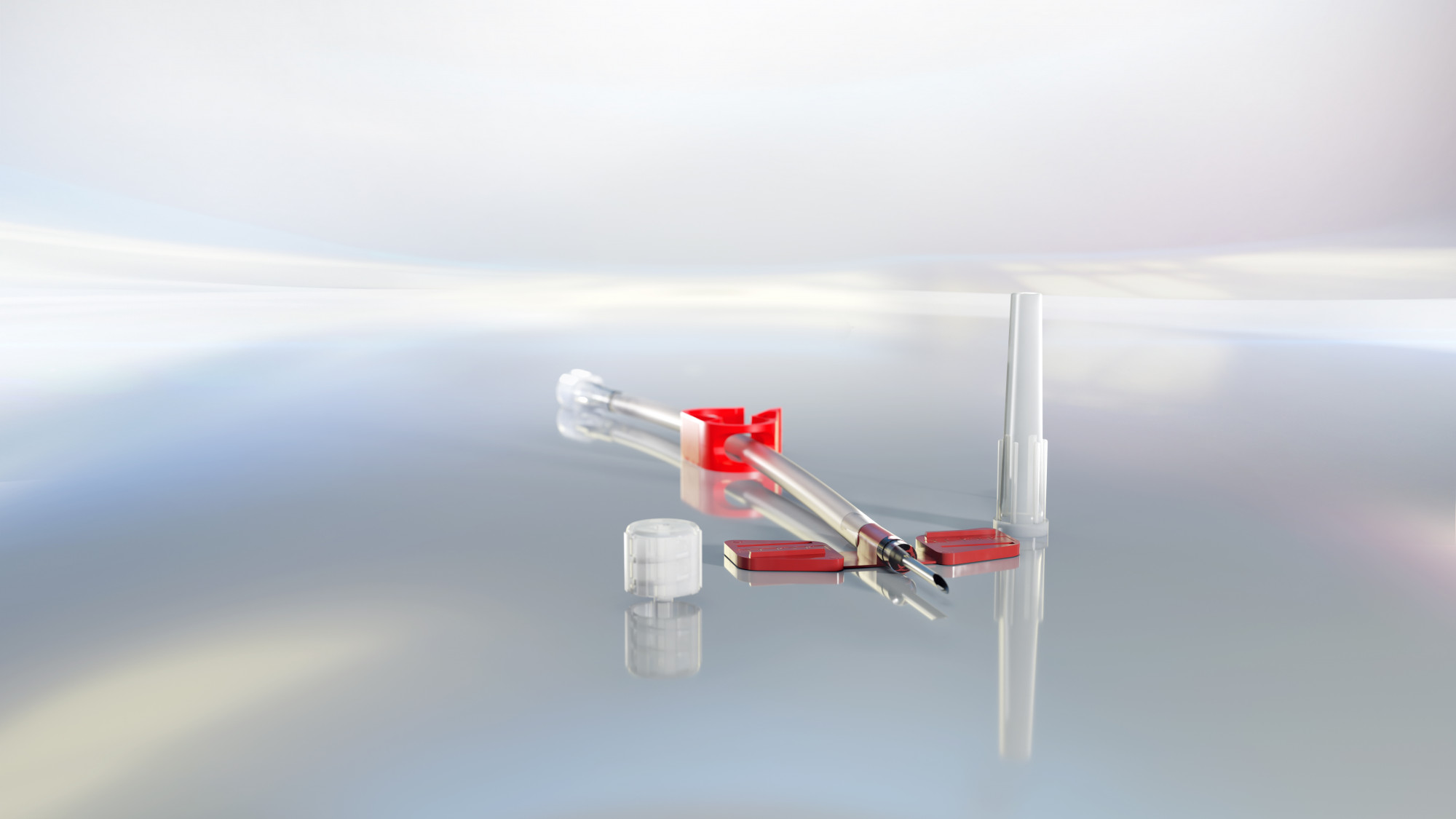

Dialysis Cannula with Rotating Wings
The Bionic dialysis cannulas with rotating wings offer the highest precision and gentle puncture with every use. Thanks to the exceptional sharpness and perfection of the bevel, Bionic needles are a reliable choice for all vascular accesses. The edges in the rear bevel area are carefully rounded to make the puncture even smoother and more comfortable. BackRequest a quote now
Product Highlights at a Glance
✓ Vascular-sparing puncture
✓ High blood flow rates possible
✓ Easy and safe application
✓ Various designs
✓ Easy handling
✓ Minimization of injury risk
✓ Carefully rounded
✓ Rotating wing design
✓ TÜV Product Service checked
Vascular-Sparing Puncture.
For more safety
The Bionic dialysis cannulas are characterized by a particularly gentle puncture. The carefully rounded edges at the back of the cannula reduce the risk of vascular injuries and improve patient comfort. This ensures a gentle, precise puncture that works optimally even with sensitive vessels.
High Blood Flows.
For efficient dialysis.
With Bionic needles, particularly high blood flows are possible. The 15G needle, with an outer diameter of 1.8 mm, allows blood flows of up to 350 ml/min, ideal for more intensive dialysis treatments. The 16G needles for standard blood flows of 250 ml/min also provide reliable and efficient results while being gentle in use.

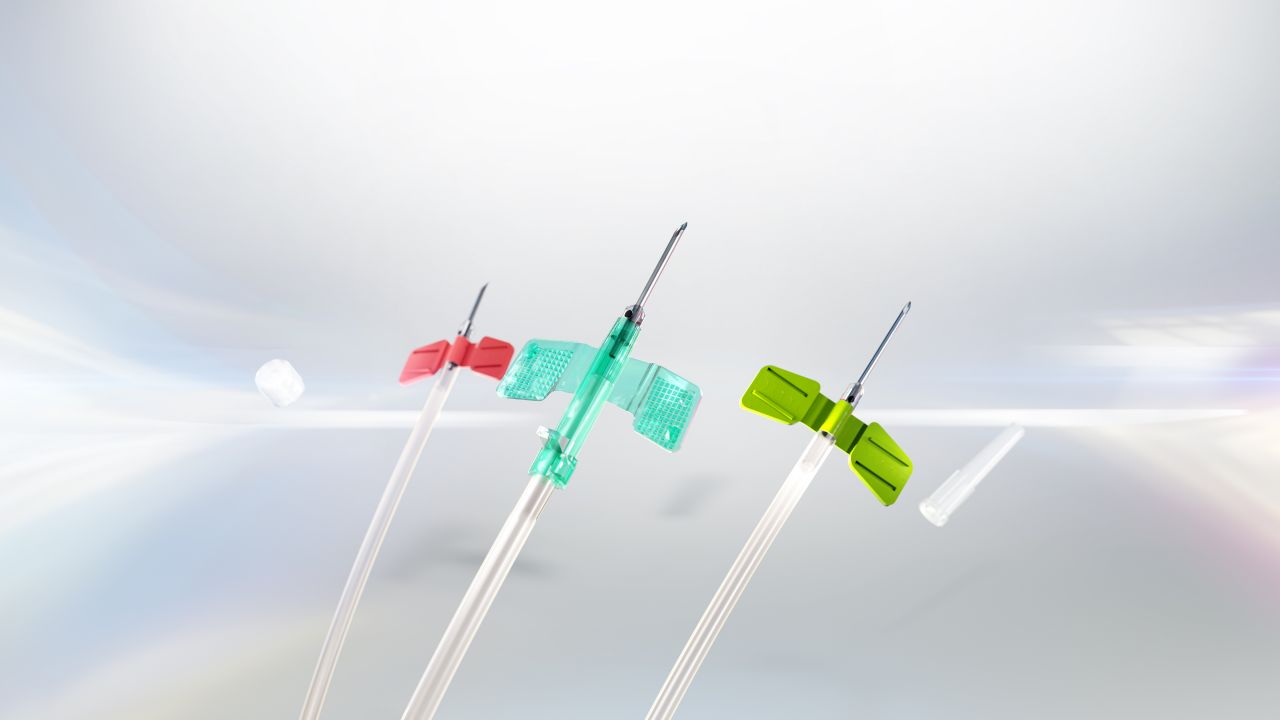

Varied Designs for individual Requirements
Different treatment forms and vascular accesses require the right choice of needles. Bionic offers an impressive selection of over 80 different dialysis needles, including special versions for rare cases. Whether in practice, for night or home dialysis, or in the field of transfusion – the right accessories complete the range.| Cannula dimension (gauge) | Ø x length | Wing colour | Tube length |
|---|---|---|---|
| 18 G | 1,3 x 20 mm | Pink | 30 cm |
| 17 G | 1,5 x 15 mm | Red | 15 cm |
| 1,5 x 20 mm | 30 cm | ||
| 1,5 x 25 mm | 30 cm | ||
| 16 G | 1,6 x 15 mm | Green | 15 cm, 30 cm |
| 1,6 x 20 mm | 15 cm, 30 cm, 50 cm | ||
| 1,6 x 25 mm | 15 cm, 30 cm, 50 cm | ||
| 15 G | 1,5 x 15 mm | Yellow | 15 cm |
| 1,8 x 20 mm | 15 cm, 30 cm, 50 cm | ||
| 1,8 x 25 mm | 15 cm, 30 cm, 50 cm | ||
| 14 G | 2,0 x 20 mm | Violett | 15 cm |
| 2,0 x 25 mm | 15 cm |
Puncture Set (Customised Sets)
The Bionic connection and termination sets offer customised solutions that are perfectly tailored to your individual requirements. Each set contains all the essential components for a safe and smooth connection to the extracorporeal circuit. In day-to-day dialysis, these sets help to standardise processes, save valuable time for care staff and reduce packaging waste. The use of standardised processes not only increases efficiency, but also improves safety for patients and staff.
For more than three decades, Bionic has been developing high-quality products for vascular access. Our dialysis needles stand out with exceptionally low flow resistance. For example, cannulas with an outer diameter of 1.6 mm (16G) are suitable for the standard blood flow of 300 ml/min, while cannulas with a diameter of 1.8 mm (15G) can be used for higher blood flows of up to 350 ml/min.
Discover the precision and variety of Bionic dialysis needles with rotating wings – for gentle, reliable, and effective dialysis.
