Dialysis Bed
IMPULSE 300 KL
The Impulse 300 KL dialysis bed offers maximum flexibility and safety. Intuitive operation and practical functions provide lasting relief for the medical team. The use of high-quality materials ensures outstanding stability with a low weight. ZurückRequest a quote now
Product highlights at a glance
✓ Mattress optionally also available in 80 cm
✓ Simple operation
✓ Specially developed ABS plastic moulded parts
✓ Low-voltage drive system
✓ Battery operation possible
✓ Safe use of floor scales due to small centre distance
✓ Antistatic double castors
✓ Gradually adjustable, integrated bed extension

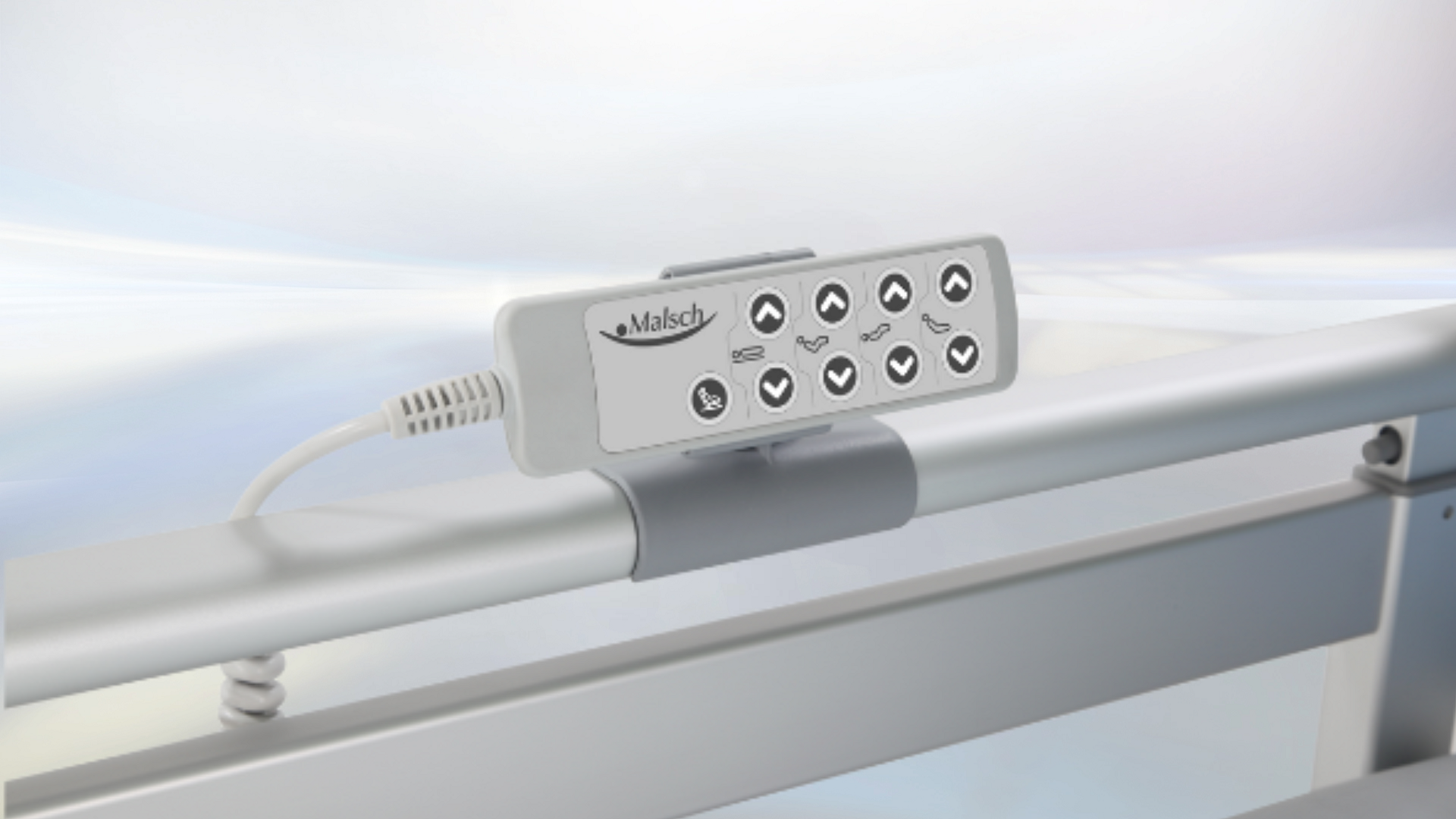

✓ Patient handset with integrated locking function
✓ Automatic CPR and shock
Maximum flexibility
Thanks to individual adjustment.

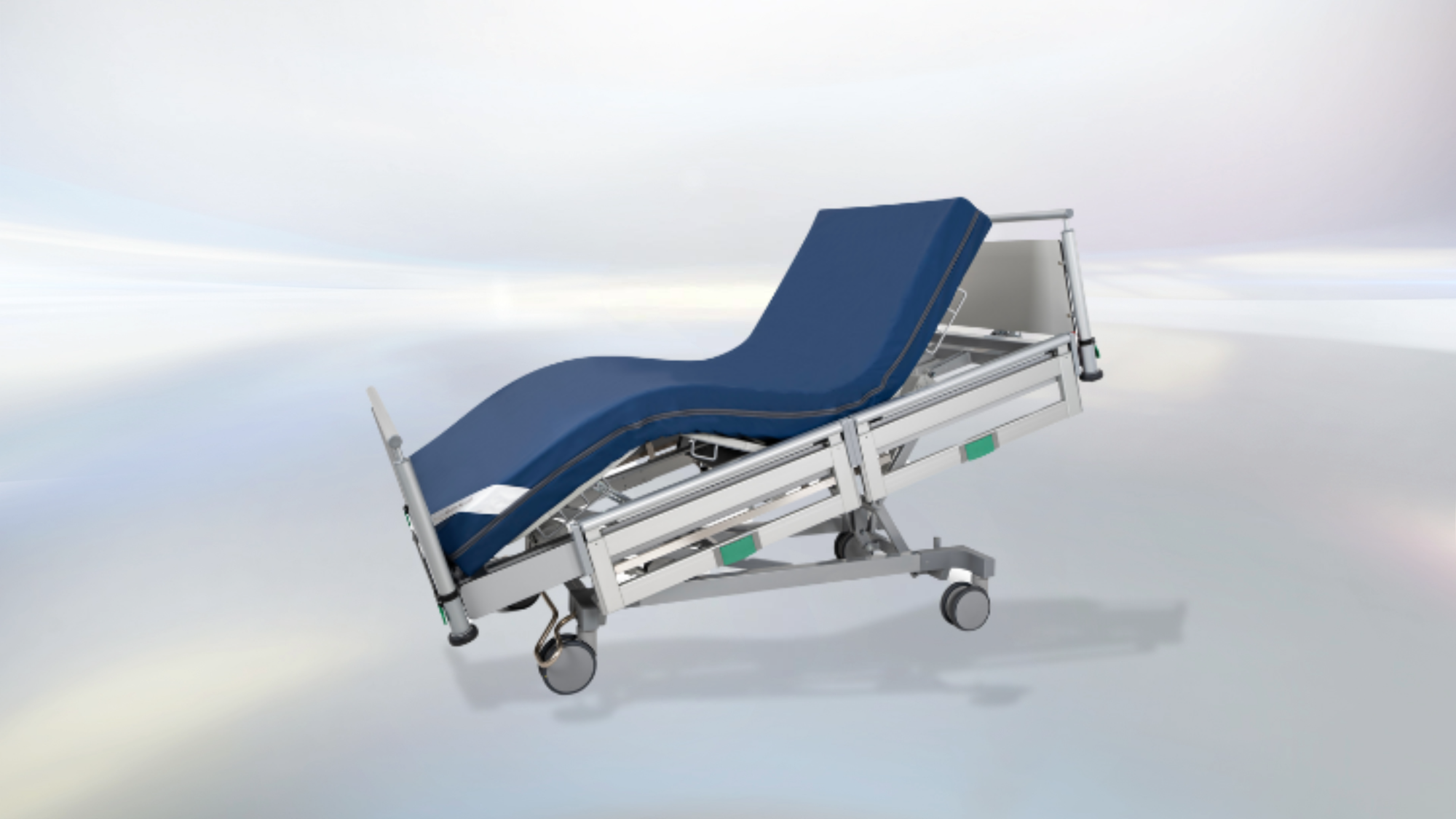

The four-section mattress base with mattress levelling can be precisely adjusted using electric drives - for optimum comfort and individual patient positioning. Whether sitting or lying position, every setting can be controlled effortlessly.
Vertical side rail system.
For perfect comfort.

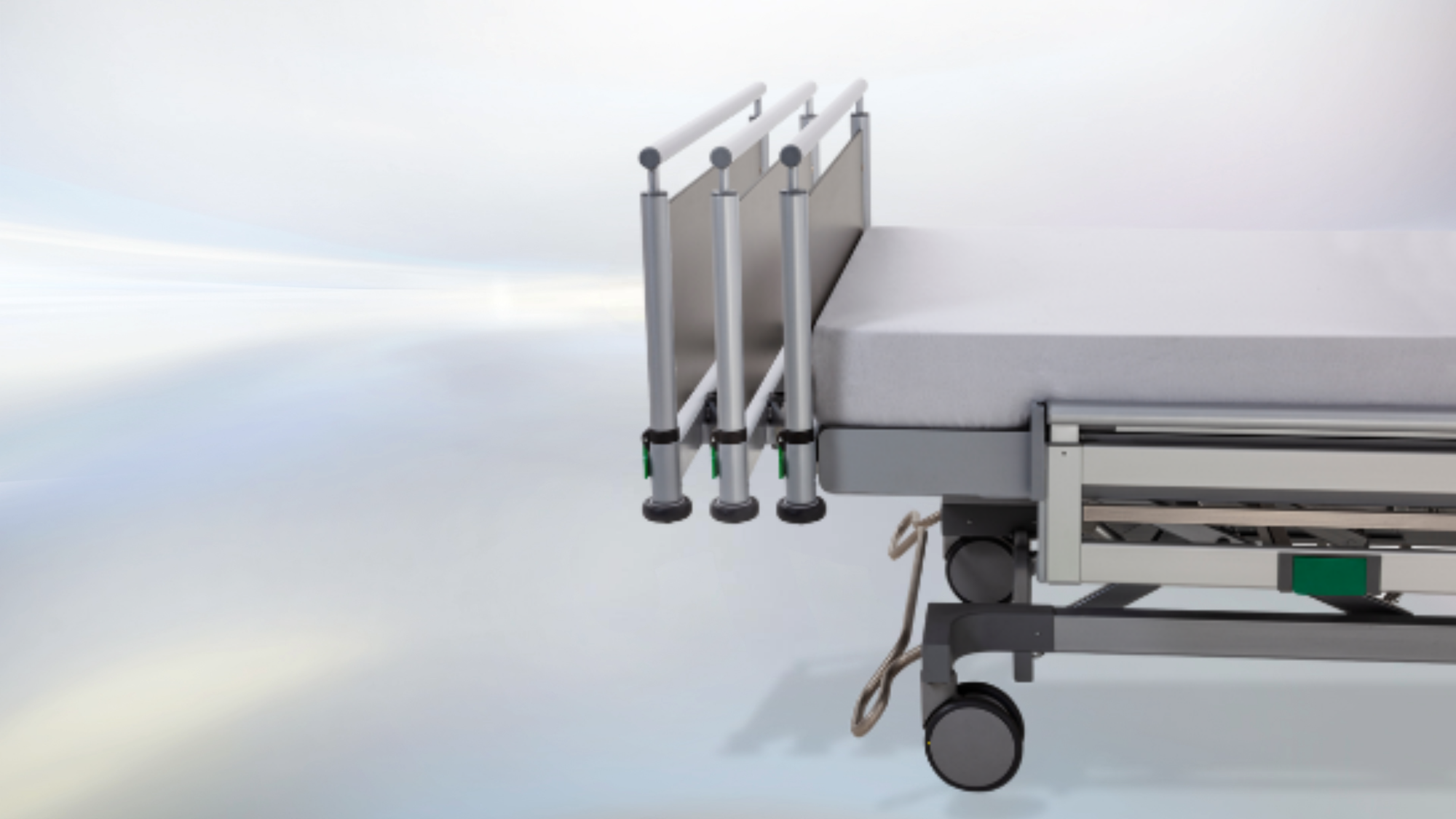

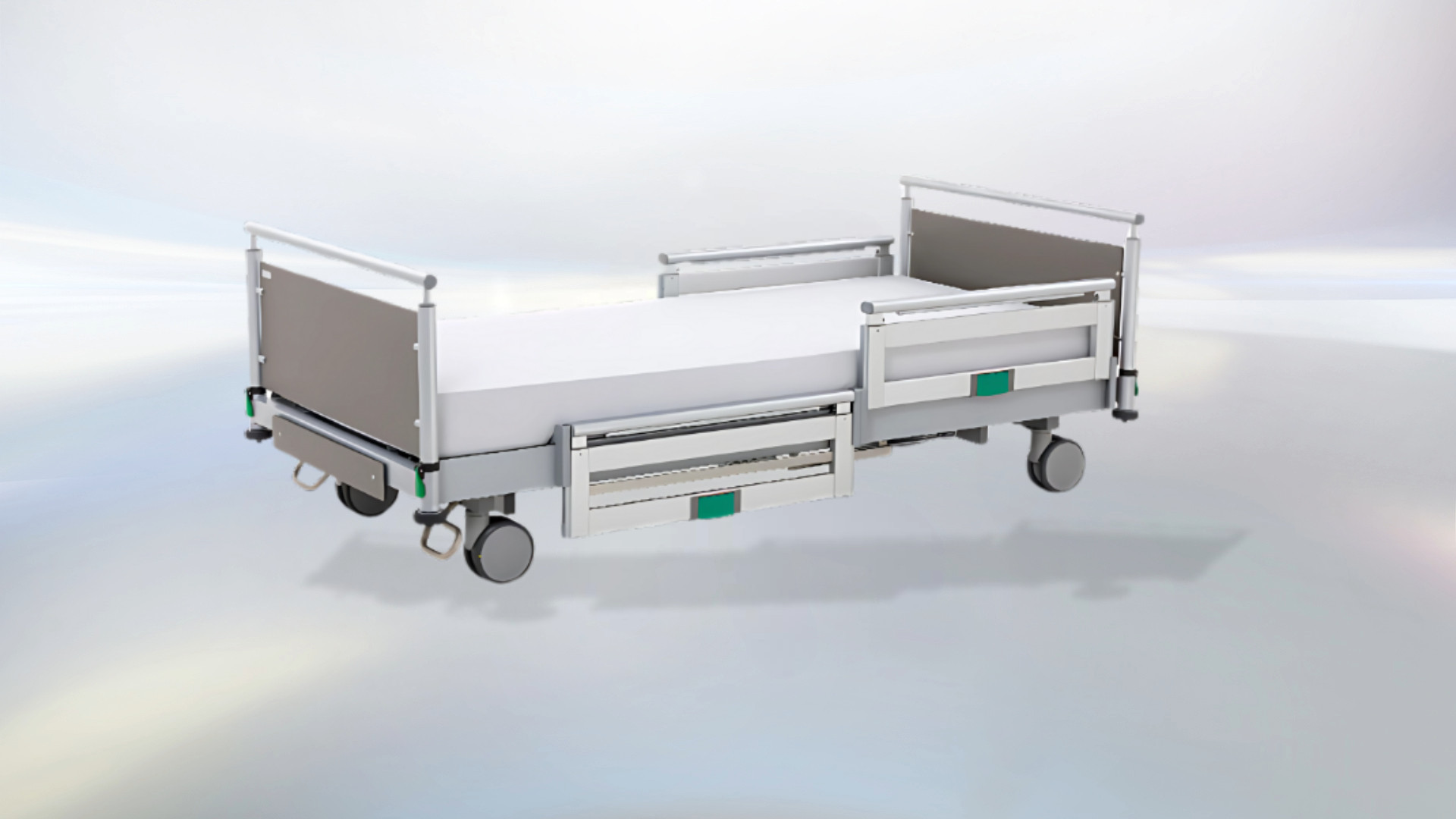

With four height positions, the vertically retractable, split side rail system (VGS) enables flexible use for a wide range of application scenarios. The main advantages of the telescopic version are its compact design, which requires no space at the sides, and the extended fall prevention position.
Adapted to new patients.
The integrated bed extension.

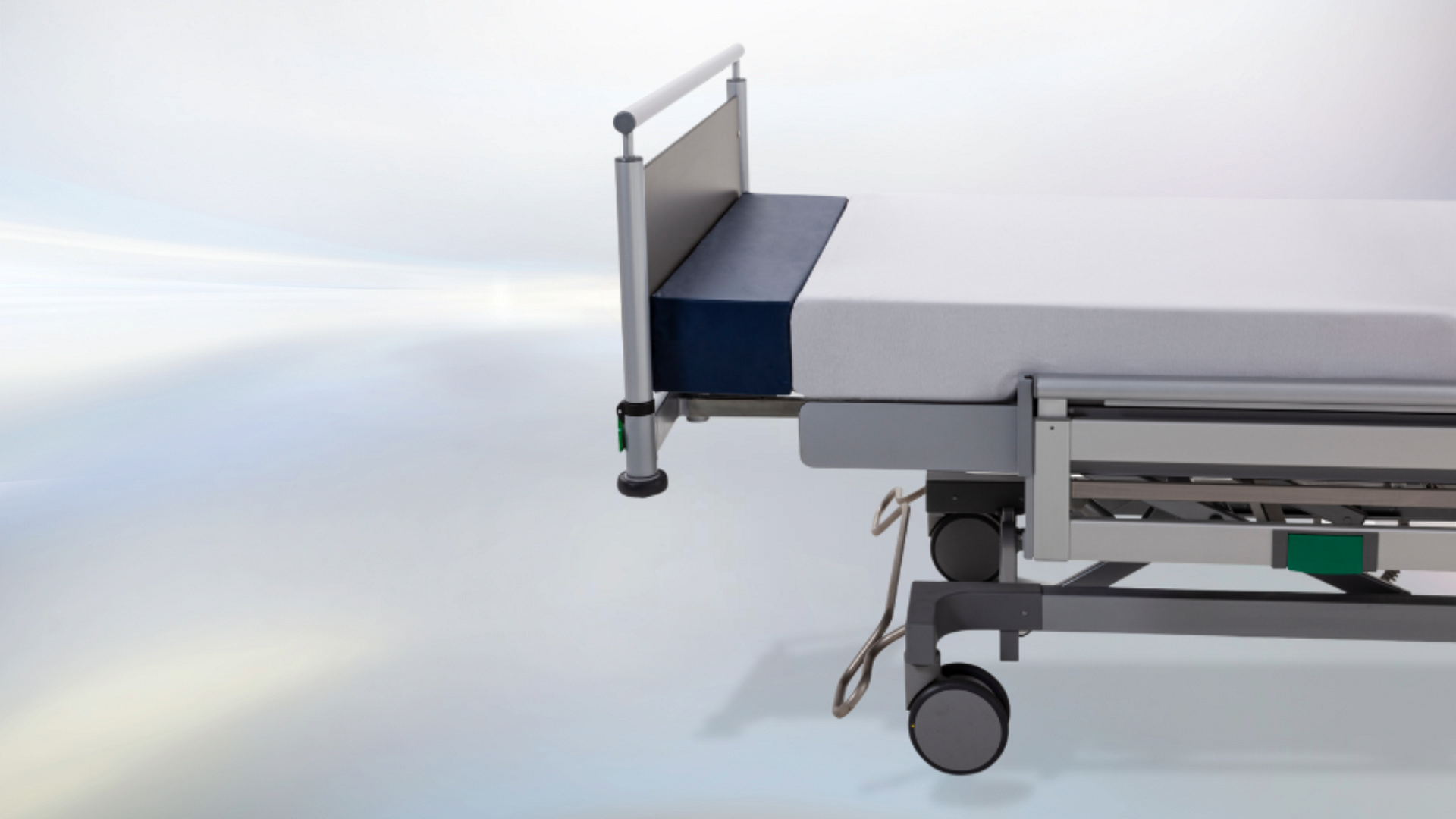

Changing patients require flexible solutions. The integrated bed extension allows even tall people to lie in optimum comfort.
The mattress base can be extended in seconds without tools using the quick-release mechanism. When extended, all bed functions remain fully usable.
Versatile accessories for individual requirements

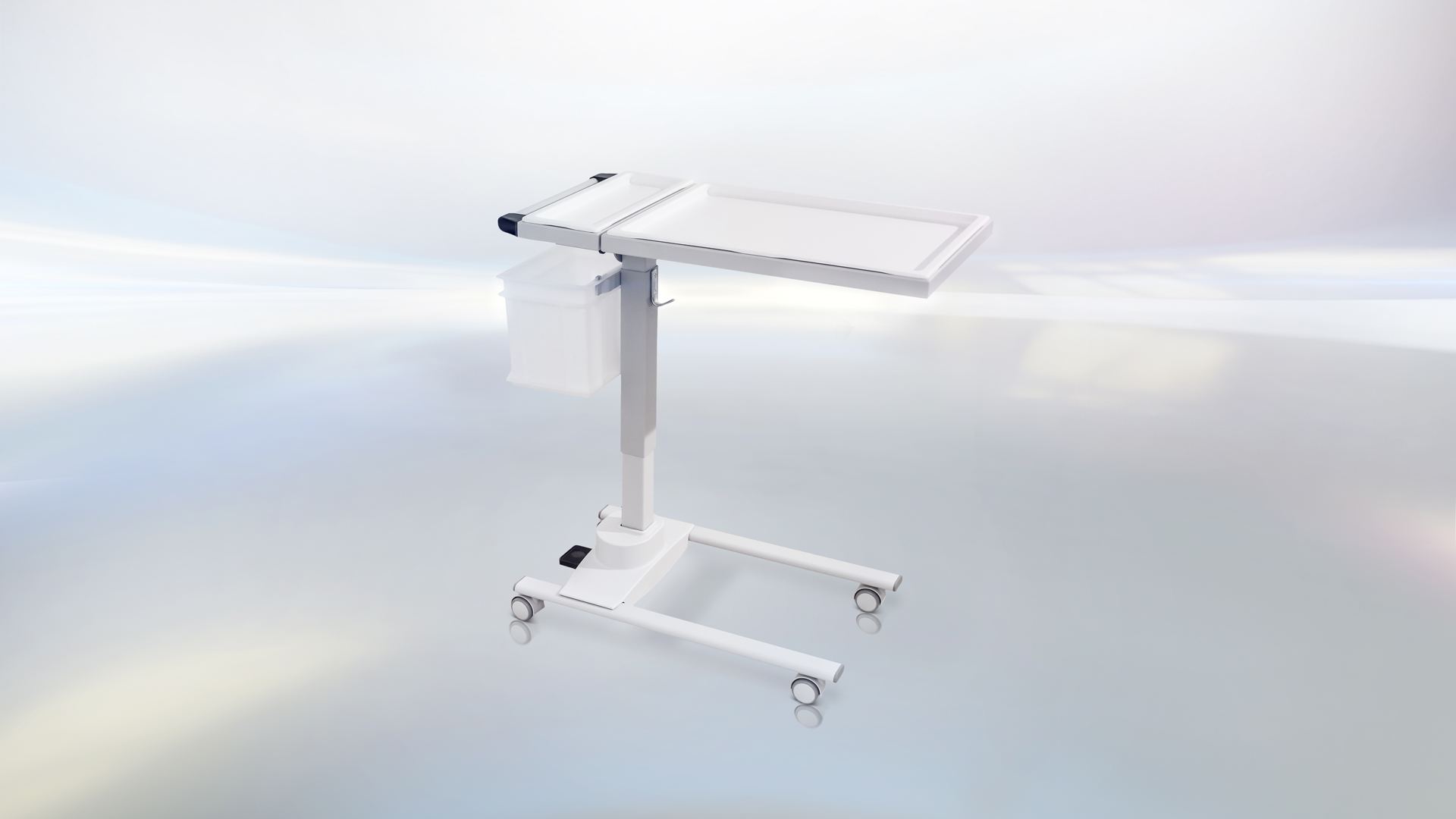

Numerous accessories such as a second handset, a mattress extension or a patient table allow you to customise the IMPULSE 300 KL to suit your needs.
Nephrology
Dialysis, apheresis
- ABS hygienic plastic mattress base (4-section)
- removable bed fronts without tools
- easy mobility thanks to 150 mm double castors
- CPR function electric and manual
- integrated bed extension up to 20 cm (without tools)
- mobilising side rail system
- supply rail on both sides
| Dimension | |
|---|---|
| Overall width | 104 cm |
| Overall length | 220 cm |
| Bed extension | 20 cm |
| Lying surface | 200 x 90/80 cm | Height of side rails | 39 cm | Total weight | ca. 120 kg |
| Adjustment options | |
| Backrest angle | 71° |
| Leg rest angle | 43° |
| Height adjustment | 36 – 86 cm | Angle shock position | – 14° |
| Electrical specifications | |
| Protection class | 2 |
| Protection rating | IPX 6 |
| Correspond to | EN 60601 |
| Motors | 4 |
| Safety | |
| Safe working load | 240 kg | Patient weight | 185 kg |
We place great importance on the continuous improvement of our products and welcome your suggestions. To give you a closer look at the quality and functionality of our therapy chairs, we offer trial orders including accessories. Please contact us so we can find the best solution for your needs together.
